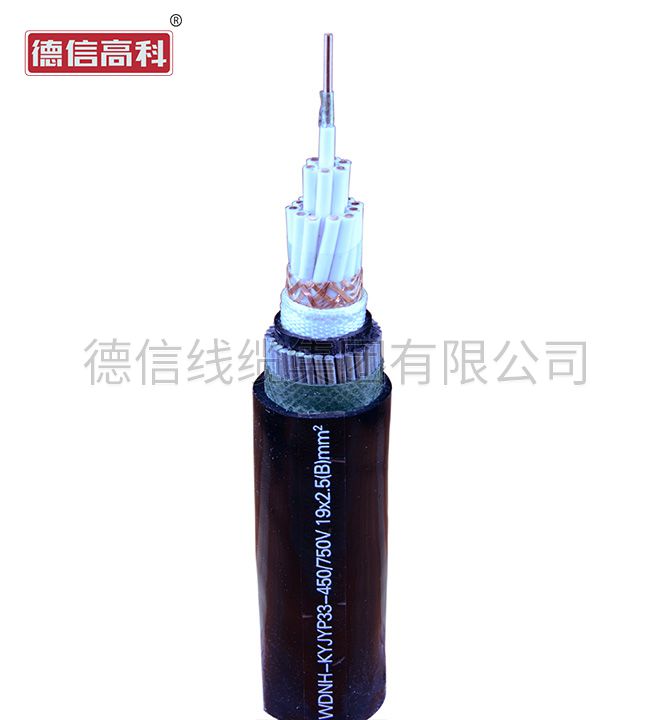

使用特性
1）电缆导体的长期允许工作温度：聚氯乙烯绝缘为70℃，电缆的敷设温度应不低于0℃。
2）敷设安装允许弯曲半径：
a 无铠装层的电缆，应不小于电缆外径的6倍；
b 有铠装或钢带屏蔽结构的电缆，应不小于电缆外径的12倍；
C 有屏蔽层结构的软电缆，应不小于电缆外径的6倍。
产品性能
1）导电线芯分为三种：第一种（A），第二种（B）适用于固定敷设（第一种是实芯导体，第二种是绞合导体）；第三种（R）是绞合软导体，适用于移动要求的软电缆。
2）导体结构及直流电阻应符合表1规定。
3）绝缘线芯识别可采用颜色标志或数字标志，绝缘厚度及绝缘电阻应符合表2规定。
4）绝缘线芯应经受工频火花，试验电压有效值为6KV。
5）电缆能经受交流50HZ、3000V，5min的耐压试验。
表1 导体结构及直流电阻
| 标称截面（mm²） | 导体结构 | 20时导体直流电阻Ω/KM≤ | ||
| 种类 | 根数/单线标称直径（mm） | 不镀锡 | 镀锡 | |
| 0.5 | 3 | 16/0.20 | 39.0 | 40.1 |
| 0.75 | 1 | 1/0.97 | 24.5 | 24.8 |
| 0.75 | 2 | 7/0.37 | 24.5 | 24.8 |
| 0.75 | 3 | 24/0.20 | 26.0 | 26.7 |
| 1.0 | 1 | 1/1.13 | 18.1 | 18.2 |
| 1.0 | 2 | 7/0.43 | 18.1 | 18.2 |
| 1.0 | 3 | 32/0.20 | 19.5 | 20.0 |
| 1.5 | 1 | 1/1.38 | 12.1 | 12.2 |
| 1.5 | 2 | 7/0.52 | 12.1 | 12.2 |
| 1.5 | 3 | 30/0.25 | 13.3 | 13.7 |
| 2.5 | 1 | 1/1.78 | 7.41 | 7.56 |
| 2.5 | 2 | 7/0.68 | 7.41 | 7.56 |
| 2.5 | 3 | 50/0.25 | 7.98 | 8.21 |
| 4 | 1 | 1/2.25 | 4.61 | 4.70 |
| 4 | 2 | 7/0.85 | 4.61 | 4.70 |
| 6 | 1 | 1/2.76 | 3.08 | 3.11 |
| 6 | 2 | 7/1.04 | 3.08 | 3.11 |
| 10 | 2 | 7/1.35 | 1.83 | 1.84 |
表1 导体结构及直流电阻
| 标称截面（mm） | 绝缘标称厚度（mm） | 绝缘电阻Ω/KM≥ | |
| 20℃ | 70℃ | ||
| PVC | PVC | ||
| 0.5 | 0.6 | 13 | 0.013 |
| 0.75 | 0.6 | 12 | 0.012 |
| 1.0 | 0.6 | 11 | 0.011 |
| 1.5 | 0.7 | 11 | 0.011 |
| 2.5 | 0.8 | 10 | 0.010 |
| 4 | 0.8 | 8.5 | 0.0085 |
| 6 | 0.8 | 7 | 0.0070 |
| 10 | 1.0 | 6.5 | 0.0065 |
产品命名
1）电缆型号用字母及数字含义
K .............................................................. 控制系列代号
V ............................................................... 聚氯乙烯
YJ .............................................................. 交联聚乙烯
V ............................................................... 聚氯乙烯
Y ............................................................... 聚乙烯
P ............................................................... 编织屏蔽
P2 ............................................................... 铜带屏蔽
P3 ............................................................... 铝塑复合薄膜屏蔽
R ................................................................. 软结构
2 .................................................................. 双钢带铠装
3 .................................................................. 钢丝铠装
2 .................................................................. 聚氯乙烯外护套
3 .................................................................. 聚乙烯外护套
2）产品表示方法
产品用型号、规格和标准标号表示。
示例：
a）铜芯交联聚乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆，固定敷设用，额定电压450/750、24芯、1.5mm²、铜带屏蔽，无绿/黄双色绝缘线芯，表示：KYJVP2-450/750 24X1.5 GB/T9330.3-2008
b）铜芯交联聚乙烯绝缘聚氯乙烯护套控制电缆，固定敷设用，额定电压450/750V、24芯、1.5mm²、有绿/黄双色绝缘线芯，表示：第1种导体结构：KVV-450/750 23X1.5+1X1.5 GB/T9330.0-2008
c）聚氯乙烯绝缘钢带铠装聚氯乙烯护套控制电缆，额定电压450/750V，7芯，标称截面1.5mm²，表示为：KV22-450/750 7X1.5 GB/T9330-2008
产品型号、名称和使用范围（见表3）
表3 产品型号、名称和使用范围
| 型号 | 名称 | 使用范围 |
| KVV | 钢芯聚氯乙烯绝缘聚氯乙烯护套控制电缆 | 敷设在室内、电缆沟、管道固定场合 |
| KVVP | 钢芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆 | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 |
| KVVP2 | 钢芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆 | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 |
| KVV22 | 钢芯聚氯乙烯绝缘聚氯乙烯护套钢带铠装控制电缆 | 敷设在室内、电缆沟、管道、直埋等能承受较大机械外力等固定场合 |
| KVVR | 钢芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 | 敷设在室内移动要求柔软的场合 |
| KYJV | 钢芯交联聚乙烯绝缘聚氯乙烯护套控制电缆 | 敷设在室内、电缆沟、管道固定场合 |
| KYJVP | 钢芯交联聚乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆 | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 |
| 注：未列出的电缆型号可按GB/T9330.1-2008标准中的规定进行组合 | ||
产品规格（见表4）
| 型号 | 额定电压（V） | 导体标称截面（mm²） | |||||||
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| 芯数 | |||||||||
KVV KVVP KYJV KYJVP | 450/750 | 4~61 | 2~61 | 2~14 | 2~10 | ||||
KVVP2 KYJVP2 | 4~61 | 4~14 | 4~10 | ||||||
KVV22 KYJV22 | 7~61 | 4~61 | 4~14 | 4~10 | |||||
| KVVR | 4~61 | ||||||||
| KVVRP | 4~61 | 4~48 | |||||||
产品相关性能参数（见表5）
表5 产品相关性能参数
| 芯数及标称截面（mm²） | 电缆计算外径（mm） | 电缆计算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 2X0.75 | 8.1 | 9.3 | — | — | — | — | 61 | 93 | — | — | — | — |
| 2X1.0 | 8.4 | 9.6 | — | — | — | — | 69 | 103 | — | — | — | — |
| 2X1.5 | 9.4 | 10.6 | — | — | — | — | 85 | 138 | — | — | — | — |
| 2X2.5 | 10.8 | 11.9 | — | — | — | — | 116 | 180 | — | — | — | — |
| 2X4 | 11.8 | 13.9 | — | — | — | — | 154 | 230 | — | — | — | — |
| 2X6 | 13.0 | 15.0 | — | — | — | — | 199 | 275 | — | — | — | — |
| 2X10 | 17.5 | 19.0 | — | — | — | — | 373 | 455 | — | — | — | — |
| 3X0.5 | 8.0 | 9.5 | — | — | — | — | 64 | 90 | — | — | — | — |
| 芯数及标称截面（mm²） | 电缆计算外径（mm） | 电缆计算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 3X0.75 | 8.4 | 9.6 | — | — | — | — | 74 | 102 | — | — | — | — |
| 3X1.0 | 8.8 | 10.0 | — | — | — | — | 85 | 116 | — | — | — | — |
| 3X1.5 | 9.8 | 11.5 | — | — | — | — | 107 | 154 | — | — | — | — |
| 3X2.5 | 11.4 | 13.0 | — | — | — | — | 151 | 208 | — | — | — | — |
| 3X4 | 12.5 | 15.0 | — | — | — | — | 234 | 271 | — | — | — | — |
| 3X6 | 14.4 | 16.5 | — | — | — | — | 291 | 312 | — | — | — | — |
| 3X10 | 18.5 | 20.0 | — | — | — | — | 473 | 561 | — | — | — | — |
| 4X0.5 | 8.4 | 10.0 | — | — | 9.0 | 10.5 | 79 | 104 | — | — | 79 | 109 |
| 4X0.75 | 9.1 | 10.3 | 10.2 | — | 9.3 | 11.0 | 82 | 118 | 102 | — | 99 | 139 |
| 4X1.0 | 9.5 | 11.5 | 10.6 | — | 11.0 | 11.5 | 102 | 148 | 117 | — | 113 | 155 |
| 4X1.5 | 10.7 | 11.9 | 11.6 | — | 11.5 | 12.5 | 133 | 184 | 150 | — | 145 | 194 |
| 4X2.5 | 12.4 | 14.4 | 13.2 | — | 13.0 | 15.0 | 194 | 251 | 214 | — | 201 | 264 |
| 4X4 | 14.3 | 15.7 | 15.2 | 18.5 | — | — | 278 | 356 | 300 | 465 | — | — |
| 4X6 | 15.6 | 17.0 | 16.2 | 19.0 | — | — | 367 | 447 | 392 | 568 | — | — |
| 4X10 | 20.0 | 22.0 | 21.2 | 25.0 | — | — | 606 | 702 | 620 | 875 | — | — |
| 5X0.5 | 9.2 | 10.5 | 10.4 | — | 9.6 | 11.0 | 88 | 132 | 102 | — | 92 | 136 |
| 5X0.75 | 9.8 | 11.0 | 10.8 | — | 10.5 | 11.2 | 102 | 149 | 118 | — | 119 | 161 |
| 5X1.0 | 10.2 | 11.4 | 11.2 | — | 11.0 | 12.0 | 121 | 172 | 138 | — | 132 | 184 |
| 5X1.5 | 11.6 | 12.8 | 12.2 | — | 11.9 | 13.5 | 157 | 217 | 175 | — | 171 | 231 |
| 5X2.5 | 14.1 | 15.5 | 15.2 | — | 14.3 | 16.0 | 246 | 319 | 263 | — | 262 | 343 |
| 5X4 | 15.5 | 17.5 | 16.2 | 19.5 | — | — | 334 | 418 | 358 | 533 | — | — |
| 5X6 | 17.0 | 19.0 | 18.0 | 21.5 | — | — | 444 | 531 | 691 | 682 | — | — |
| 5X10 | 22.5 | 24.0 | 23.8 | 26.5 | — | — | 755 | 849 | 1045 | 1041 | — | — |
| 7X0.5 | 10.0 | 11.0 | 11.2 | — | 10.5 | 11.5 | 108 | 153 | 123 | — | 115 | 160 |
| 7X0.75 | 10.5 | 11.7 | 11.6 | 13.7 | 11.0 | 12.5 | 128 | 177 | 145 | 292 | 147 | 195 |
| 7X1.0 | 11.0 | 13.0 | 12.2 | 14.2 | 11.5 | 13.0 | 153 | 205 | 171 | 317 | 170 | 221 |
| 7X1.5 | 12.5 | 14.5 | 13.6 | 17.5 | 13.0 | 15.0 | 205.5 | 263 | 224 | 384 | 222 | 281 |
| 7X2.5 | 16.0 | 17.0 | 16.3 | 18.9 | 16.0 | 17.5 | 317 | 389 | 341 | 503 | 339 | 412 |
| 7X4 | 16.5 | 18.5 | 17.9 | 20.9 | — | — | 447 | 518 | 473 | 643 | — | — |
| 7X6 | 18.0 | 20.5 | 19.2 | 22.5 | — | — | 598 | 676 | 618 | 836 | — | — |
| 7X10 | 24.0 | 26.0 | 25.0 | 28.5 | — | — | 994 | 1106 | 1033 | 1283 | — | — |
| 8X0.5 | 11.0 | 12.2 | 11.7 | 16.0 | 11.5 | 13.0 | 120 | 172 | 140 | 278 | 128 | 178 |
| 8X0.75 | 11.6 | 13.5 | 13.2 | 16.5 | 12.0 | 13.5 | 143 | 197 | 161 | 309 | 167 | 218 |
| 8X1.5 | 14.5 | 16.5 | 15.6 | 18.5 | 15.0 | 17.0 | 247 | 315 | 269 | 422 | 270 | 339 |
| 8X2.5 | 16.1 | 18.5 | 17.6 | 21.0 | 17.5 | 19.0 | 357 | 438 | 382 | 559 | 381 | 464 |
| 8X4 | 18.0 | 21.0 | 19.2 | 23.0 | — | — | 494 | 584 | 518 | 739 | — | — |
| 8X6 | 20.1 | 23.5 | 21.2 | 24.9 | — | — | 684 | 785 | 716 | 936 | — | — |
| 芯数及标称截面（mm²） | 电缆计算外径（mm） | 电缆计算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 2X0.75 | 8.1 | 9.3 | — | — | — | — | 61 | 93 | — | — | — | — |
| 2X1.0 | 8.4 | 9.6 | — | — | — | — | 69 | 103 | — | — | — | — |
| 2X1.5 | 9.4 | 10.6 | — | — | — | — | 85 | 138 | — | — | — | — |
| 2X2.5 | 10.8 | 11.9 | — | — | — | — | 116 | 180 | — | — | — | — |
| 2X4 | 11.8 | 13.9 | — | — | — | — | 154 | 230 | — | — | — | — |
| 2X6 | 13.0 | 15.0 | — | — | — | — | 199 | 275 | — | — | — | — |
| 2X10 | 17.5 | 19.0 | — | — | — | — | 373 | 455 | — | — | — | — |
| 3X0.5 | 8.0 | 9.5 | — | — | — | — | 64 | 90 | — | — | — | — |
| 芯数及标称截面（mm²） | 电缆计算外径（mm） | 电缆计算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 8X10 | 27.0 | 29.0 | 28.2 | 31.5 | — | — | 1210 | 1261 | 1159 | 1450 | — | — |
| 10X0.5 | 11.5 | 14.5 | 13.0 | 17.0 | 12.5 | 14.5 | 146 | 203 | 166 | 320 | 156 | 211 |
| 10X0.75 | 12.9 | 15.0 | 14.0 | 18.0 | 13.3 | 15.3 | 174 | 235 | 195 | 361 | 200 | 261 |
| 10X1.0 | 14.3 | 15.7 | 15.2 | 18.5 | 15.0 | 16.5 | 229 | 296 | 251 | 407 | 251 | 321 |
| 10X1.5 | 16.3 | 18.0 | 17.2 | 20.5 | 17.0 | 18.5 | 302 | 383 | 327 | 500 | 329 | 408 |
| 10X2.5 | 19.1 | 21.5 | 19.0 | 23.5 | 19.3 | 20.7 | 437 | 528 | 467 | 689 | 467 | 561 |
| 10X4 | 20.1 | 23.5 | 21.5 | 25.0 | — | — | 629 | 733 | 663 | 887 | — | — |
| 10X6 | 24.4 | 26.5 | 23.4 | 27.0 | — | — | 846 | 957 | 883 | 1129 | — | — |
| 10X10 | 30.5 | 32.5 | 31.5 | 35.0 | — | — | 1375 | 1541 | 1425 | 1809 | — | — |
| 12X0.5 | 12.5 | 15.0 | 13.5 | — | 13.0 | 15.0 | 165 | 223 | 185 | — | 176 | 234 |
| 12X0.75 | 13.9 | 15.3 | 14.5 | 18.0 | 14.3 | 15.7 | 218 | 285 | 240 | 390 | 252 | 315 |
| 12X1.0 | 14.7 | 16.1 | 15.5 | 19.0 | 15.5 | 17.0 | 259 | 330 | 282 | 443 | 288 | 358 |
| 12X1.5 | 16.7 | 18.1 | 17.5 | 20.5 | 17.2 | 19.0 | 346 | 425 | 372 | 548 | 377 | 464 |
| 12X2.5 | 19.6 | 22.0 | 20.5 | 23.5 | 20.5 | 22.5 | 505 | 559 | 536 | 763 | 540 | 637 |
| 12X4 | 22.8 | 24.5 | 23.0 | 25.5 | — | — | 729 | 838 | 764 | 995 | — | — |
| 12X6 | 25.2 | 27.0 | 24.5 | 28.0 | — | — | 987 | 1103 | 1025 | 1280 | — | — |
| 14X0.5 | 14.0 | 15.5 | 14.5 | — | 13.5 | 16.0 | 205 | 269 | 226 | — | 198 | 259 |
| 14X0.75 | 14.6 | 16.0 | 15.0 | 18.5 | 15.0 | 16.4 | 243 | 314 | 266 | 423 | 281 | 350 |
| 14X1.0 | 15.4 | 16.8 | 15.5 | 19.5 | 16.0 | 17.5 | 292 | 366 | 316 | 483 | 324 | 398 |
| 14X1.5 | 17.5 | 19.5 | 17.5 | 22.0 | 18.0 | 19.7 | 391 | 475 | 419 | 640 | 427 | 515 |
| 14X2.5 | 21.2 | 22.5 | 20.4 | 24.5 | 21.5 | 22.7 | 576 | 674 | 609 | 846 | 617 | 718 |
| 14X4 | 23.9 | 25.5 | 23.0 | 26.5 | — | — | 834 | 947 | 870 | 1112 | — | — |
| 14X6 | 26.4 | 28.5 | 25.3 | 29.0 | — | — | 1246 | 1254 | 1282 | 1508 | — | — |
| 16X0.5 | 14.5 | 16.0 | 15.0 | — | 15.0 | 16.5 | 227 | 294 | 251 | — | 246 | 309 |
| 16X0.75 | 15.3 | 16.7 | 15.5 | 19.5 | 16.0 | 17.5 | 271 | 343 | 295 | 457 | 312 | 384 |
| 16X1.0 | 16.1 | 17.5 | 16.0 | 20.0 | 17.0 | 18.5 | 326 | 404 | 352 | 525 | 361 | 439 |
| 16X1.5 | 18.4 | 20.5 | 18.5 | 22.5 | 18.9 | 20.3 | 438 | 526 | 467 | 684 | 477 | 569 |
| 16X2.5 | 22.8 | 23.6 | 22.0 | 25.5 | 23.0 | 24.5 | 668 | 773 | 702 | 932 | 707 | 824 |
| 19X0.5 | 15.0 | 17.0 | 15.5 | — | 15.2 | 16.6 | 258 | 328 | 280 | — | 274 | 345 |
| 19X0.75 | 16.5 | 17.4 | 16.0 | 20.0 | 16.5 | 17.9 | 309 | 384 | 334 | 504 | 359 | 434 |
| 19X1.0 | 16.9 | 18.3 | 17.0 | 21.5 | 17.5 | 19.0 | 373 | 454 | 400 | 601 | 413 | 497 |
| 19X1.5 | 19.4 | 22.0 | 19.3 | 23.5 | 20.5 | 21.7 | 504 | 597 | 535 | 761 | 551 | 648 |
| 19X2.5 | 23.9 | 24.7 | 23.0 | 26.5 | 24.2 | 25.0 | 772 | 884 | 808 | 1050 | 862 | 943 |
| 24X0.5 | 17.5 | 18.0 | 18.0 | — | 18.0 | 19.5 | 315 | 396 | 345 | — | 331 | 414 |
| 24X0.75 | 18.4 | 19.8 | 18.5 | 22.5 | 19.0 | 20.4 | 379 | 467 | 408 | 625 | 441 | 536 |
| 24X1.0 | 19.5 | 21.4 | 20.0 | 23.5 | 19.8 | 21.7 | 459 | 554 | 490 | 722 | 516 | 609 |
| 24X1.5 | 23.5 | 25.0 | 22.9 | 26.5 | 23.5 | 25.0 | 540 | 757 | 678 | 920 | 706 | 820 |
| 芯数及标称截面（mm²） | 电缆计算外径（mm） | 电缆计算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 24X2.5 | 27.7 | 28.7 | 26.6 | 30.0 | 28.1 | 29.5 | 960 | 1092 | 1003 | 1280 | 1027 | 1165 |
| 27X0.5 | 17.5 | 19.0 | 18.0 | — | 17.8 | 19.2 | 344 | 426 | 372 | — | 366 | 449 |
| 27X0.75 | 18.5 | 20.2 | 19.0 | 23.5 | 19.4 | 20.8 | 415 | 505 | 445 | 664 | 483 | 576 |
| 27X1.0 | 20.5 | 21.8 | 19.8 | 24.0 | 20.8 | 22.1 | 525 | 623 | 557 | 795 | 562 | 661 |
| 27X1.5 | 24.0 | 26.0 | 23.3 | 27.0 | 24.6 | 25.4 | 711 | 824 | 748 | 988 | 777 | 896 |
| 27X2.5 | 28.3 | 30.0 | 27.1 | 30.5 | 28.6 | 29.6 | 1061 | 1194 | 1105 | 1391 | 1135 | 1275 |
| 30X0.5 | 18.5 | 20.0 | 19.0 | 23.0 | 18.4 | 20.5 | 373 | 459 | 401 | — | 396 | 485 |
| 30X0.75 | 19.4 | 21.3 | 20.0 | 23.5 | 20.6 | 21.9 | 452 | 546 | 523 | 710 | 527 | 623 |
| 30X1.0 | 21.6 | 23.5 | 21.0 | 24.5 | 21.5 | 23.5 | 570 | 674 | 603 | 828 | 637 | 343 |
| 30X1.5 | 24.8 | 26.5 | 24.1 | 27.5 | 25.0 | 27.0 | 776 | 895 | 816 | 1071 | 849 | 974 |
| 30X2.5 | 29.3 | 31.0 | 28.1 | 31.5 | 29.7 | 30.7 | 1165 | 1304 | 1210 | 1505 | 1245 | 1391 |
| 37X0.5 | 19.5 | 22.0 | 20.0 | — | 19.7 | 22.0 | 462 | 556 | 493 | — | 470 | 567 |
| 37X0.75 | 21.9 | 23.0 | 21.4 | 25.0 | 21.5 | 23.3 | 558 | 662 | 591 | 814 | 652 | 758 |
| 37X1.0 | 23.2 | 24.5 | 22.5 | 26.0 | 23.5 | 25.0 | 681 | 792 | 717 | 955 | 759 | 873 |
| 37X1.5 | 25.0 | 28.0 | 25.8 | 29.5 | 27.4 | 28.4 | 932 | 1059 | 973 | 1242 | 1019 | 1152 |
| 37X2.5 | 29.0 | 33.0 | 30.8 | 35.0 | 31.9 | 33.6 | 1405 | 1557 | 1453 | 2150 | 1505 | 1663 |
| 44X0.5 | 22.5 | 24.0 | 23.0 | — | 22.4 | 24.5 | 539 | 645 | 574 | — | 573 | 683 |
| 44X0.75 | 23.0 | 26.0 | 23.7 | 27.0 | 24.5 | 26.1 | 654 | 769 | 691 | 937 | 764 | 883 |
| 44X1.0 | 25.8 | 27.0 | 24.9 | 28.5 | 26.2 | 27.2 | 798 | 923 | 838 | 1103 | 891 | 1021 |
| 44X1.5 | 29.7 | 30.7 | 28.7 | 33.0 | 30.0 | 32.0 | 1095 | 1238 | 1141 | 1487 | 1198 | 1351 |
| 44X2.5 | 36.0 | 38.0 | 34.3 | 39.0 | 36.0 | 38.0 | 1702 | 1875 | 1756 | 2511 | 1823 | 2008 |
| 48X0.5 | 22.5 | 25.0 | 23.5 | — | 23.0 | 24.5 | 576 | 684 | 611 | — | 613 | 724 |
| 48X0.75 | 24.7 | 26.0 | 24.0 | 27.5 | 25.0 | 26.4 | 700 | 816 | 739 | 986 | 820 | 941 |
| 48X1.0 | 24.5 | 27.0 | 25.5 | 29.0 | 26.6 | 28.0 | 858 | 985 | 899 | 1168 | 958 | 1089 |
| 48X1.5 | 28.5 | 32.0 | 29.5 | 34.0 | 30.5 | 32.1 | 1180 | 1324 | 1227 | 1900 | 1294 | 1447 |
| 48X2.5 | 34.0 | 38.0 | 35.5 | 39.5 | 36.5 | 38.2 | 1840 | 2019 | 1896 | 2675 | 1964 | 2153 |
| 52X0.5 | 23.0 | 26.0 | 23.5 | — | 23.5 | 24.7 | 620 | 727 | 658 | — | 655 | 770 |
| 52X0.75 | 23.5 | 27.0 | 24.6 | 28.0 | 25.5 | 27.1 | 750 | 871 | 789 | 1047 | 879 | 1004 |
| 52X1.0 | 26.9 | 27.9 | 26.0 | 29.5 | 27.3 | 29.0 | 918 | 1049 | 960 | 1237 | 1027 | 1163 |
| 52X1.5 | 31.0 | 33.0 | 30.6 | 35.0 | 31.0 | 33.0 | 1268 | 1418 | 1317 | 2032 | 1386 | 1546 |
| 52X2.5 | 35.0 | 40.0 | 36.0 | 40.5 | 37.5 | 39.5 | 1974 | 2156 | 2032 | 2827 | 2113 | 2304 |
| 61X0.5 | 24.5 | 27.5 | 25.0 | — | 25.2 | 27.0 | 705 | 821 | 742 | — | 750 | 872 |
| 61X0.75 | 26.8 | 28.5 | 26.0 | 29.5 | 27.0 | 28.6 | 860 | 989 | 892 | 1197 | 1011 | 1142 |
| 61X1.0 | 26.5 | 30.0 | 27.0 | 31.0 | 28.8 | 30.5 | 1057 | 1195 | 1101 | 1391 | 1182 | 1326 |
| 61X1.5 | 31.5 | 35.0 | 32.3 | 36.5 | 33.5 | 35.5 | 1507 | 1671 | 1558 | 2270 | 1650 | 1823 |
| 61X2.5 | 37.5 | 42.0 | 37.9 | 42.5 | 40.7 | 42.5 | 2317 | 2515 | 1661 | 3188 | 2479 | 2660 |
